Tipi di Cremagliera per linee ferroviarie e altre curiosita'

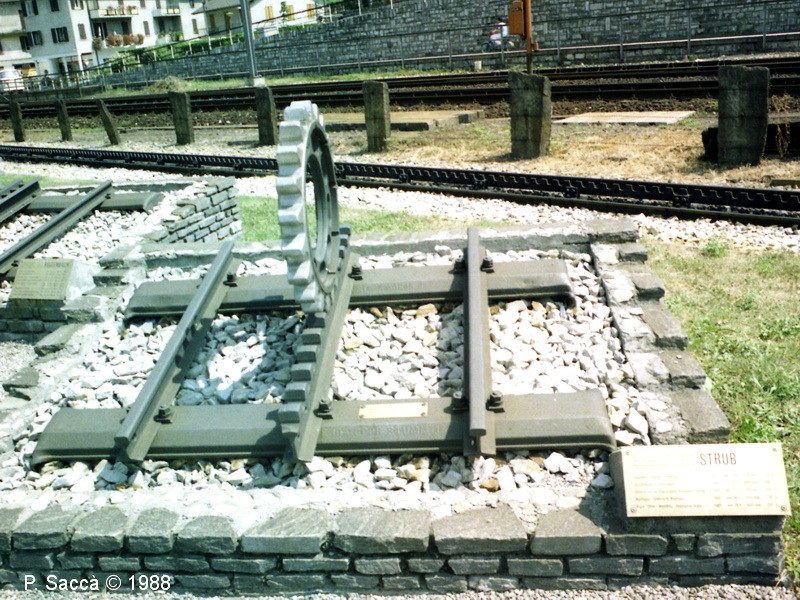

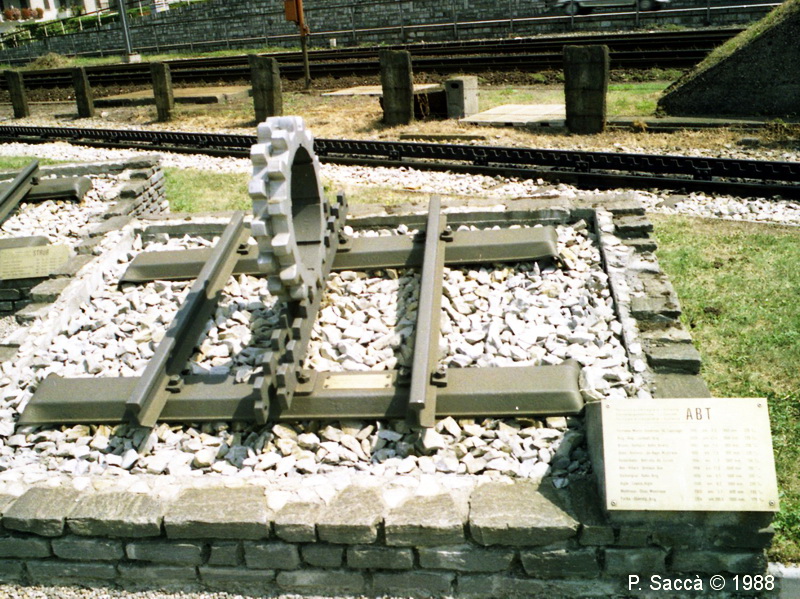

mg_0002.jpg (160702 bytes) Cremagliera tipo "STRUB", ( MG - Capolago, 1988 )
dfb_0171.jpg (211853 bytes) cm_0007_1.jpg (95302 bytes) sup_0026.jpg (116194 bytes) sup_0015.jpg (180472 bytes)

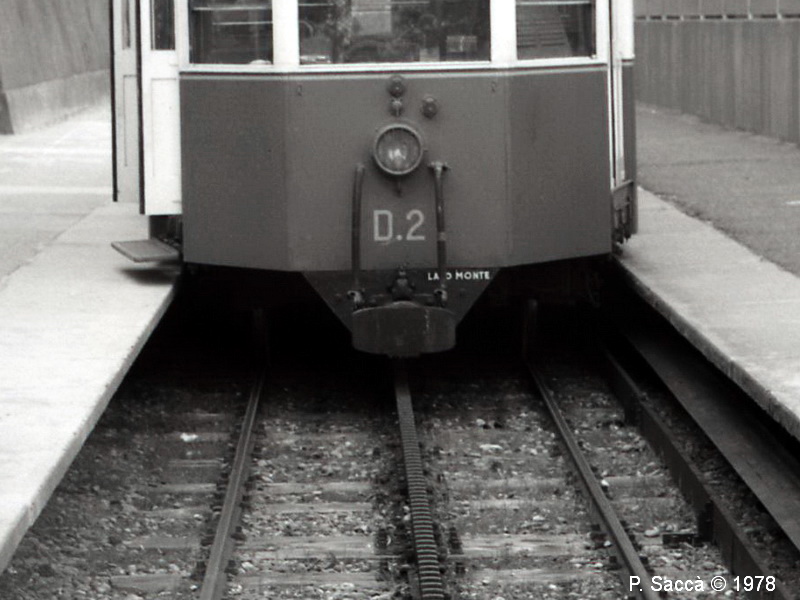

Realp - 1998 Chamonix - 08.1983 Sassi - Superga, anni '70

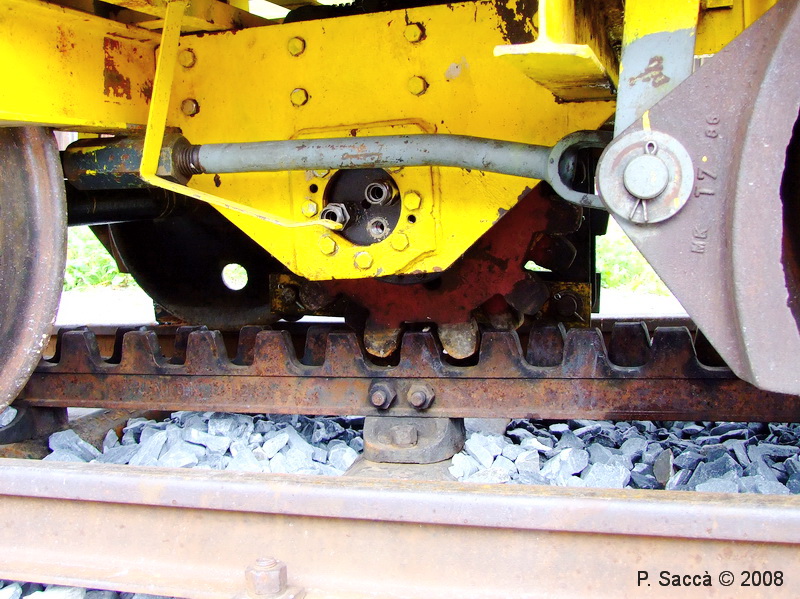

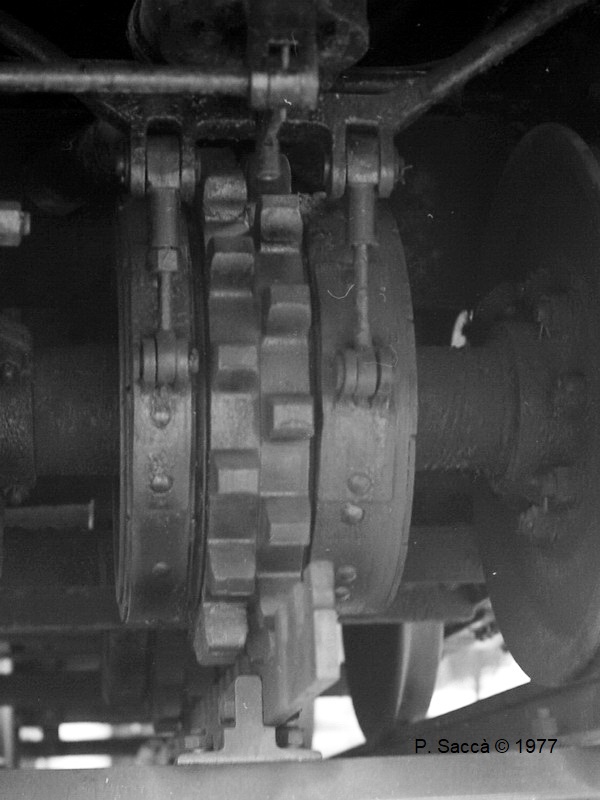

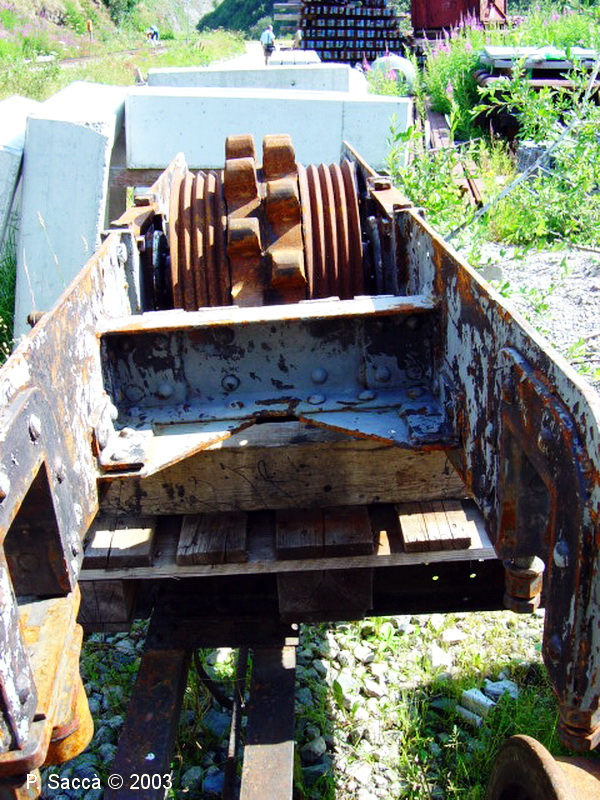

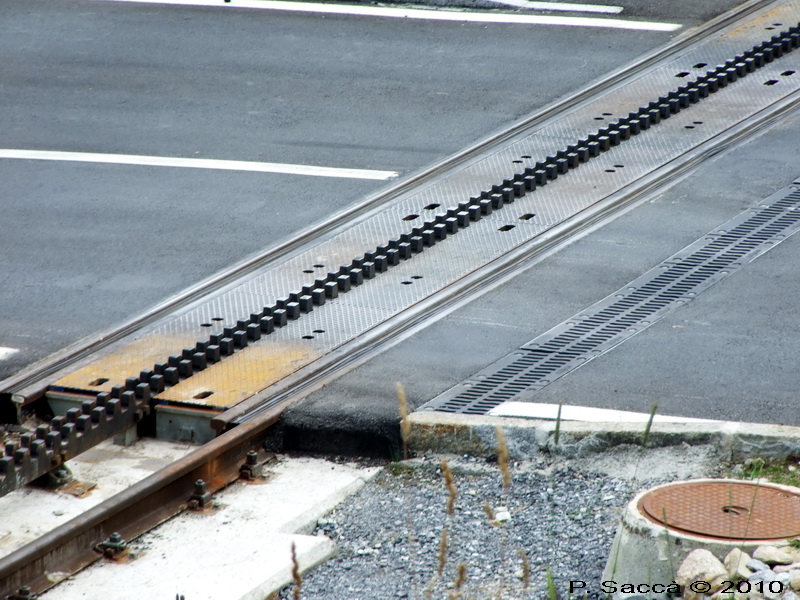

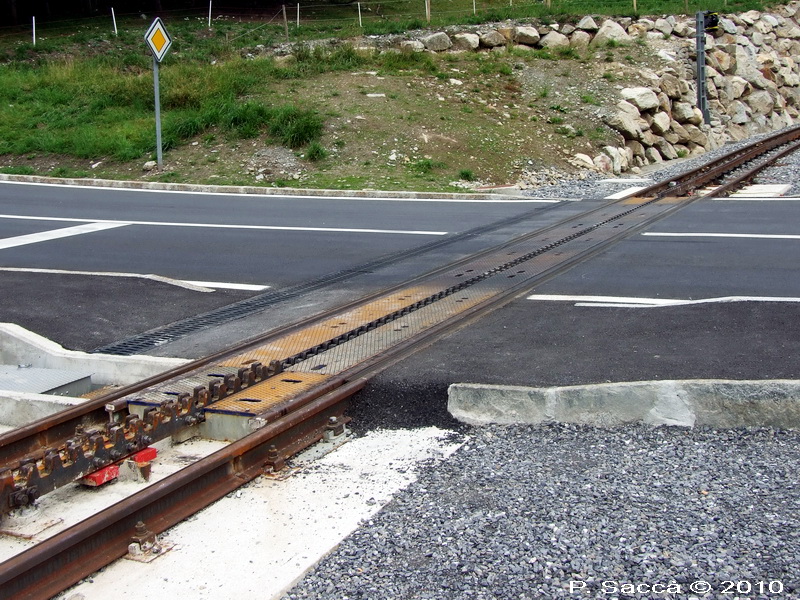

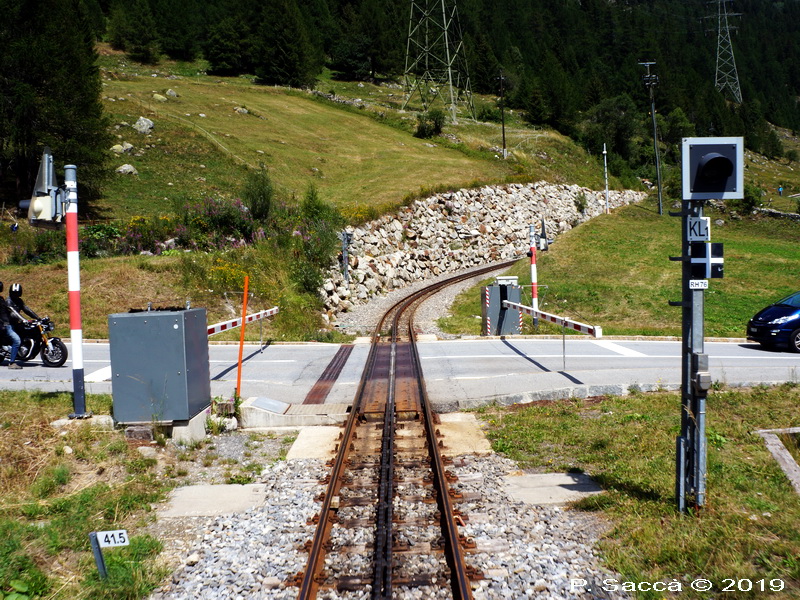

MG - Capolago - 1977 DFB - Realp - 2008 DFB - Realp - 1998

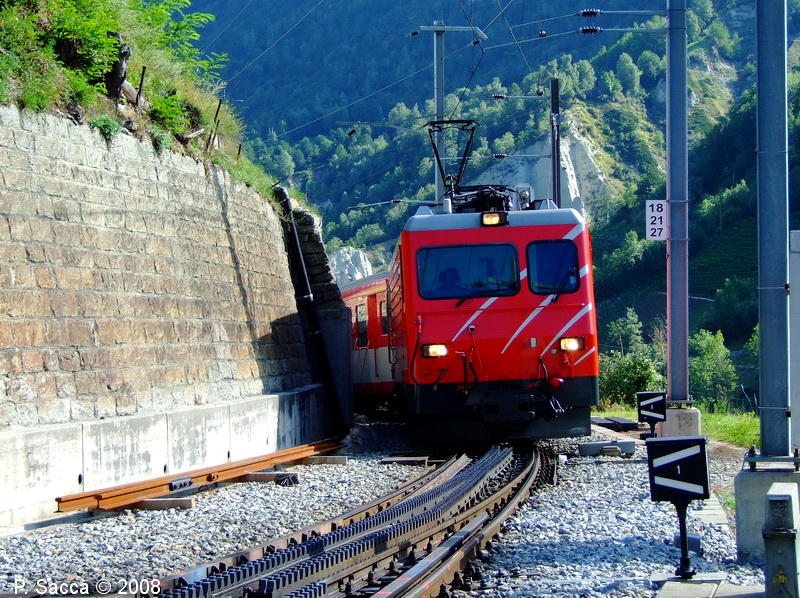

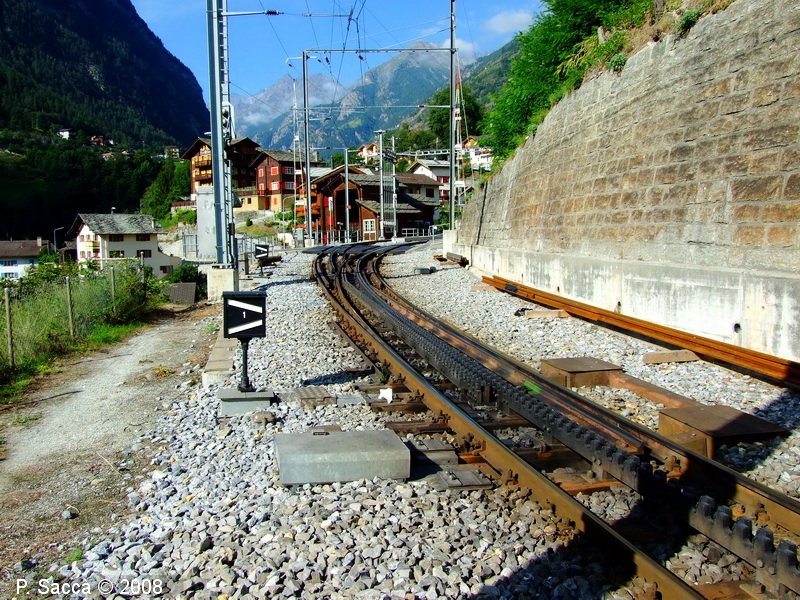

BVZ - Stalden - 2008 BVZ - Stalden - 2008

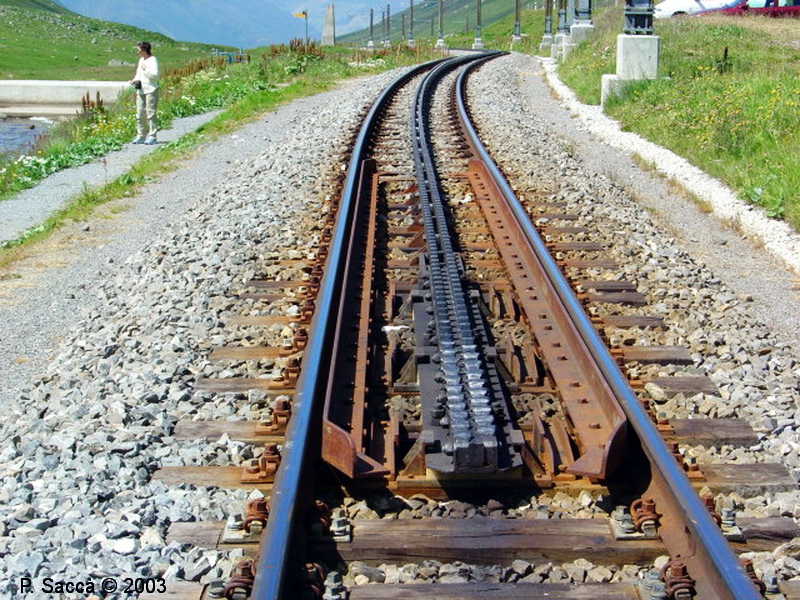

cev_0011_1.jpg (156302 bytes) mg_0014.jpg (148631 bytes) ggb_0046_b.jpg (154312 bytes) fo_0124.jpg (194828 bytes)
CEV - Blonay - 1979 MG - Capolago - 1977 GGB - Zermat - 1975 FO - Oberalpass - 2003

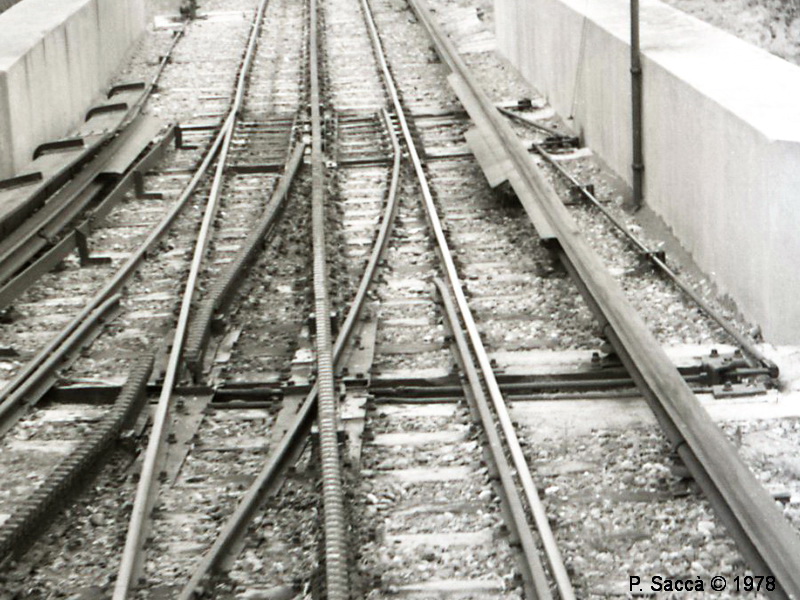

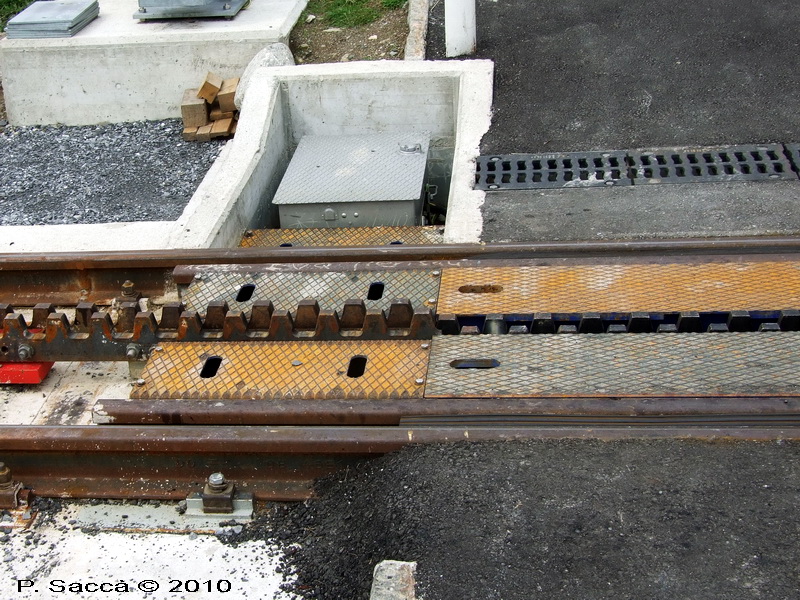

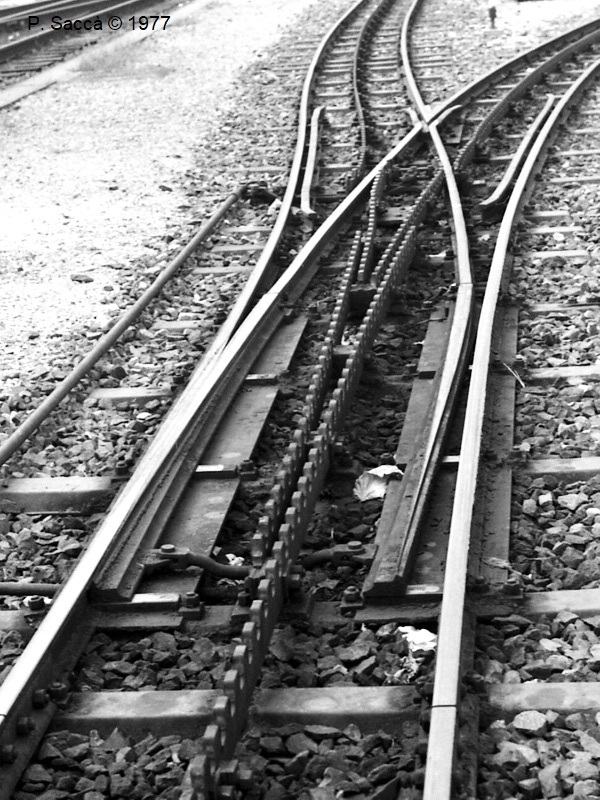

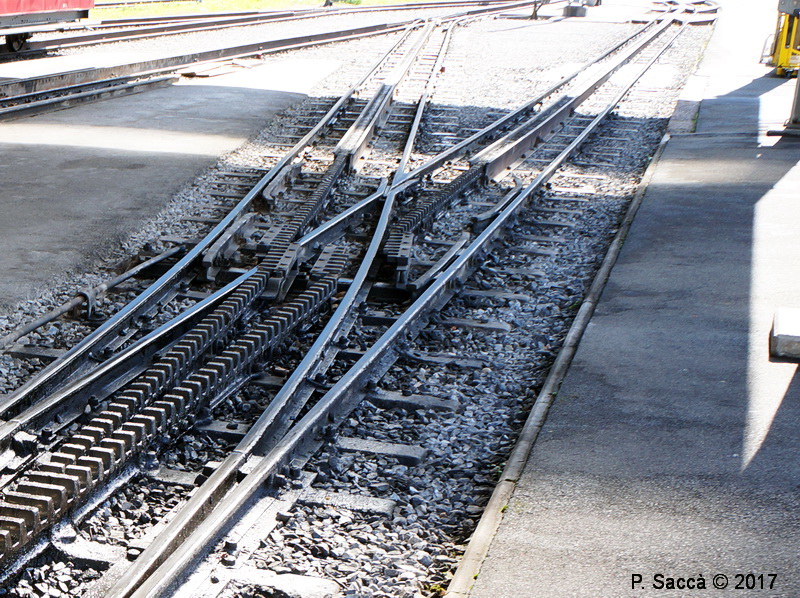

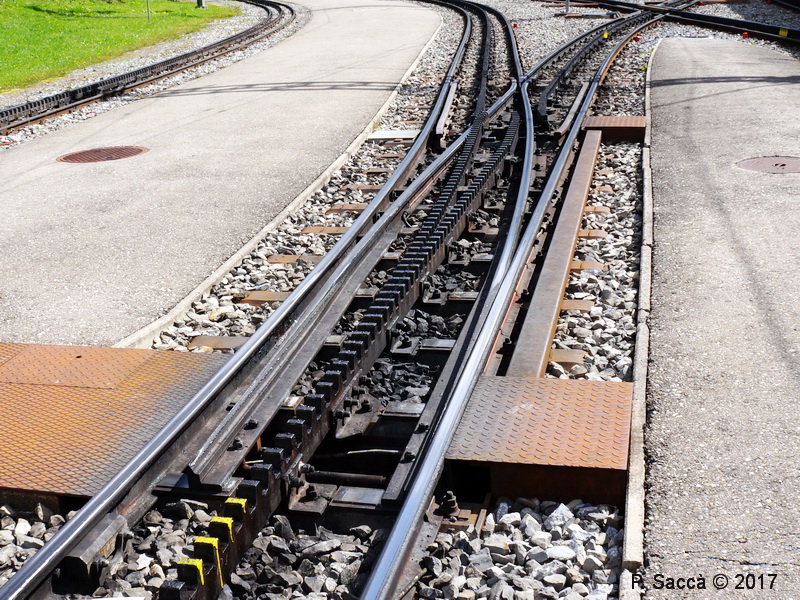

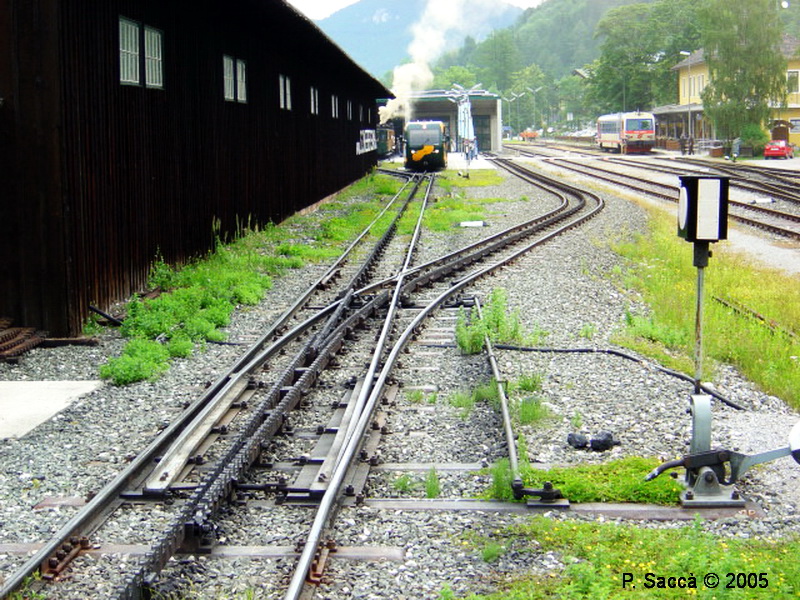

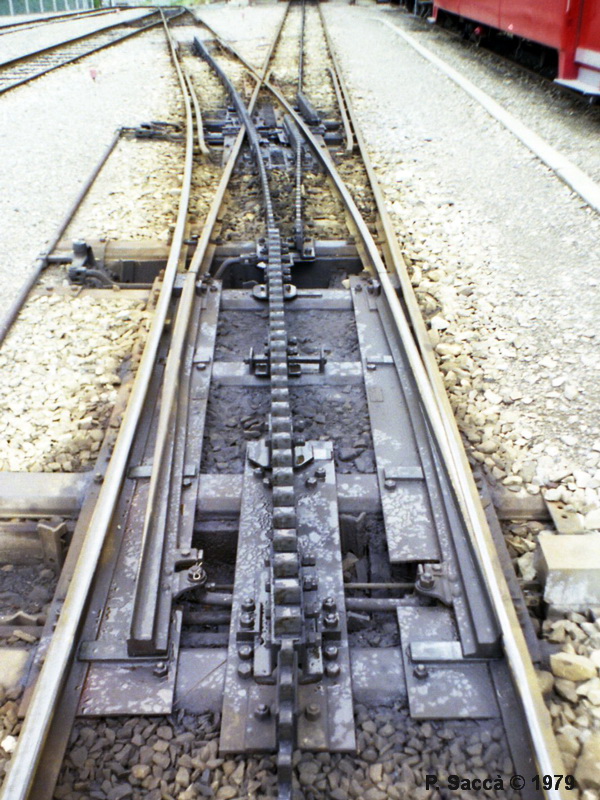

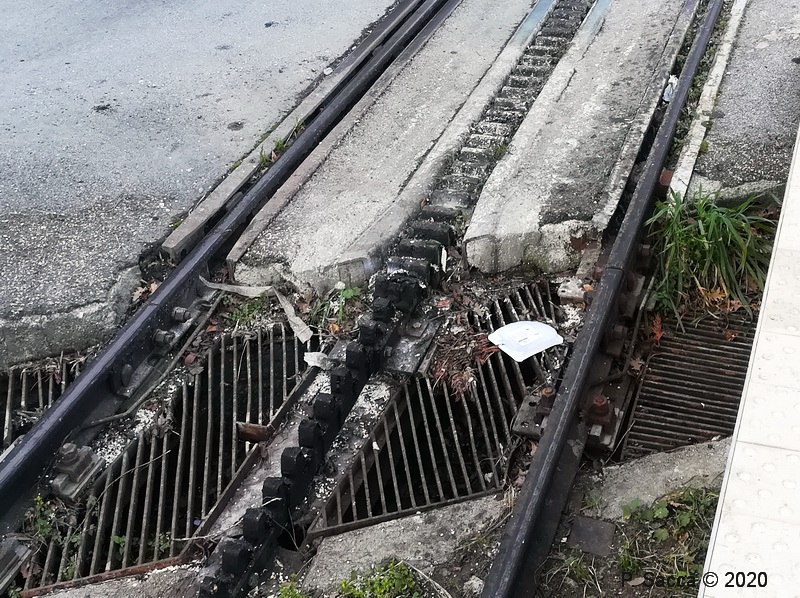

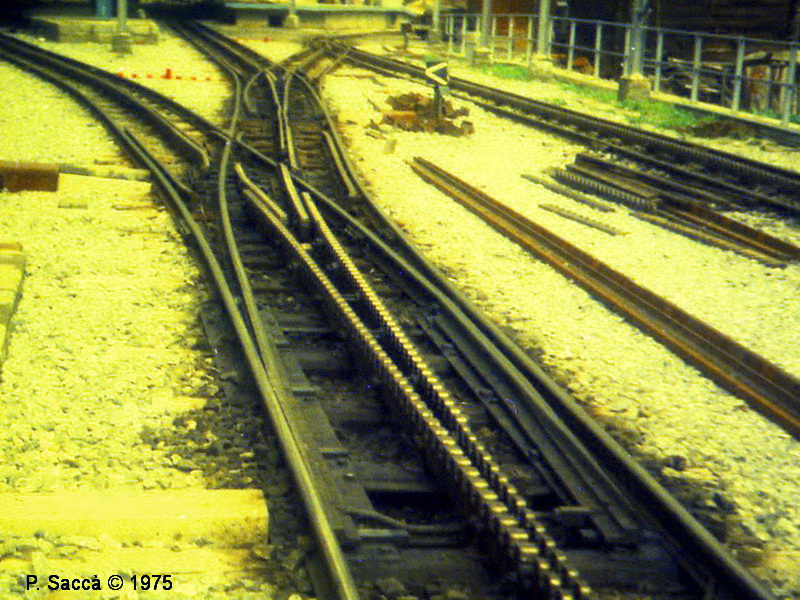

Quando gli scambi sono posizionati su tratti orizzontali per semplificare le parti mobili  viene posizionata una sola sezione della cremagliera ( una lama sola ) che garantisce comunque la continuita' di presa della ruota dentata.

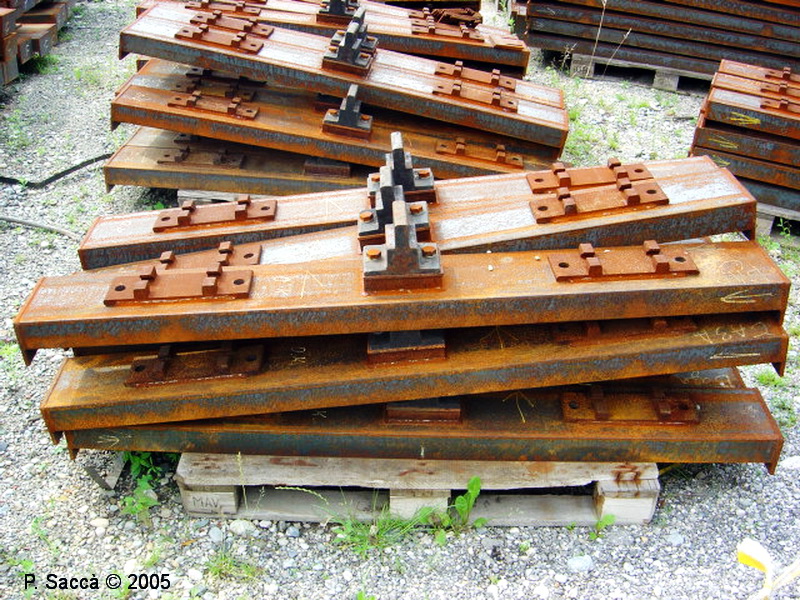

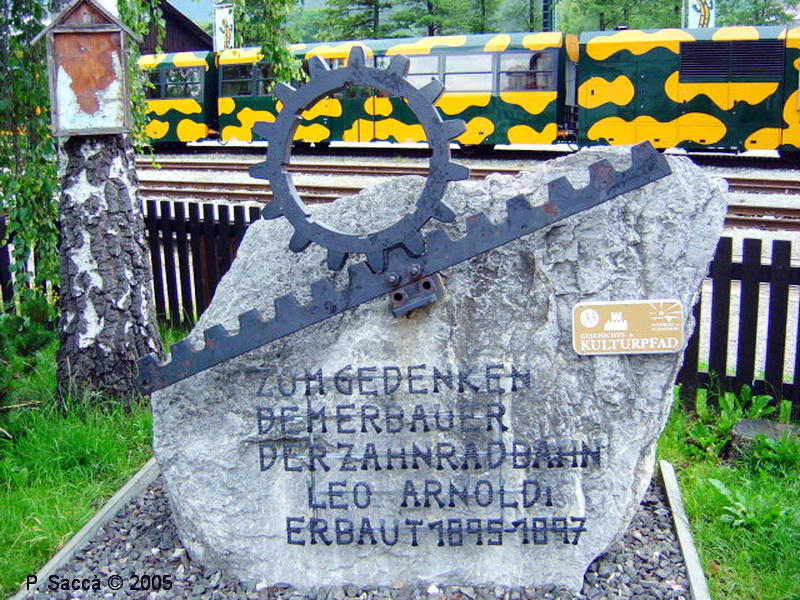

schn_0002.jpg (198070 bytes) schn_0026.jpg (187978 bytes) schn_0032.jpg (188822 bytes) schn_0033.jpg (182700 bytes)

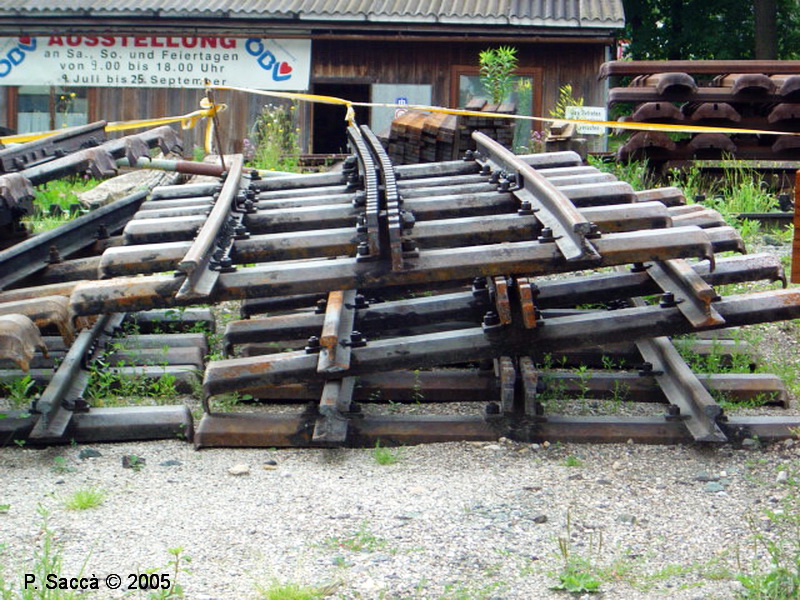

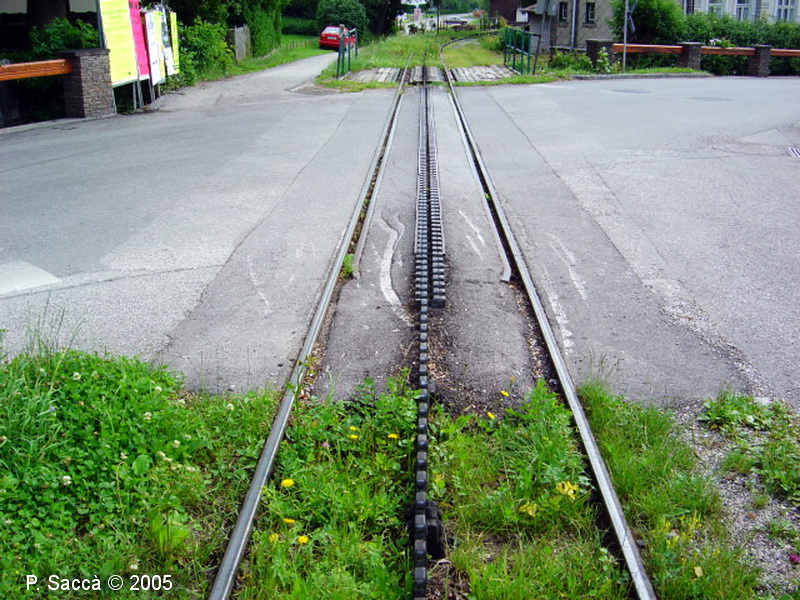

Schneebergbahn -/- Puncherg - Berfahrt (A), 2005

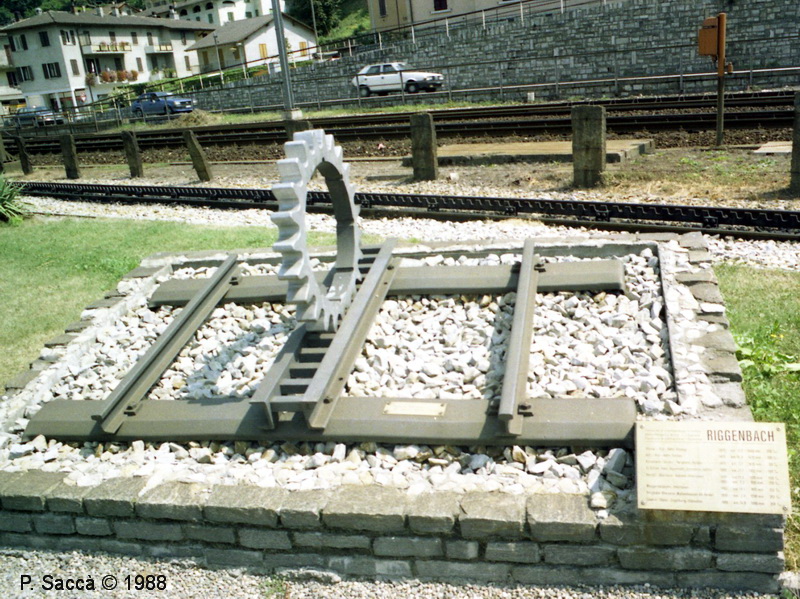

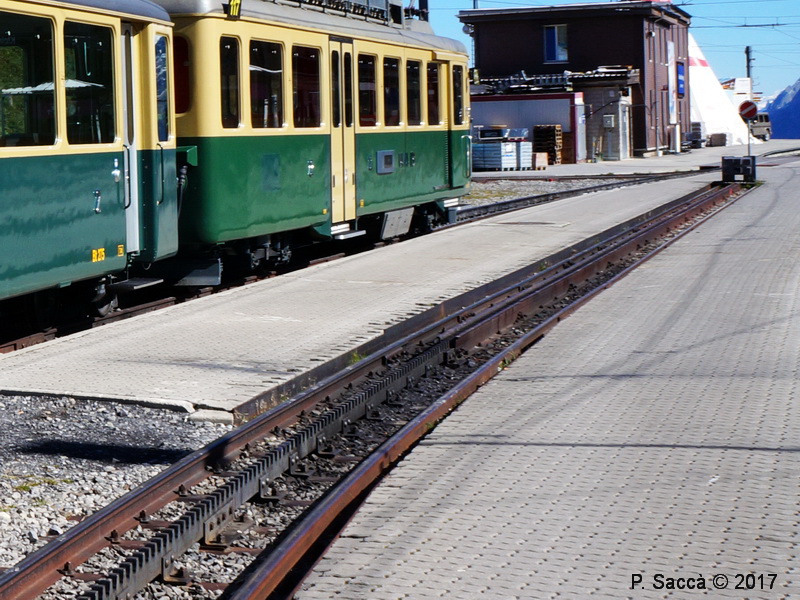

mg_0004.jpg (162976 bytes) Cremagliera tipo "Riggenbach"( MG - Capolago, 1988 )

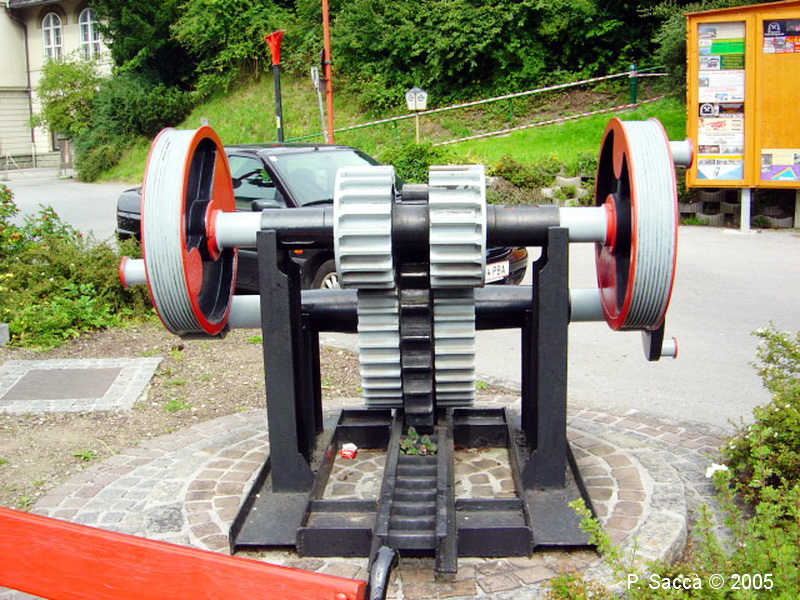

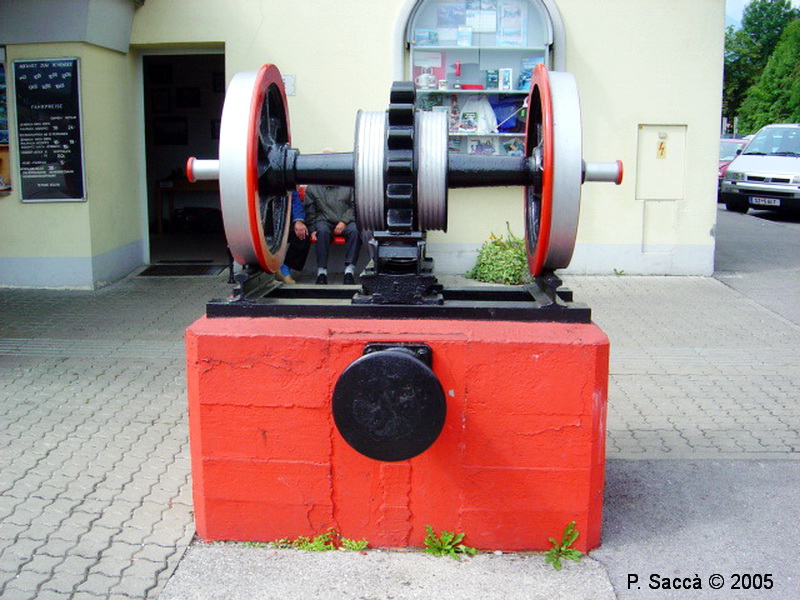

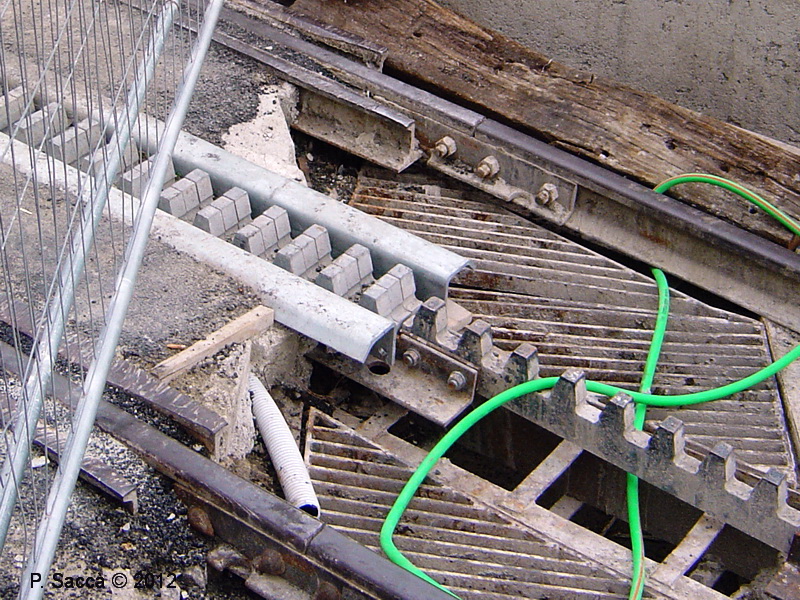

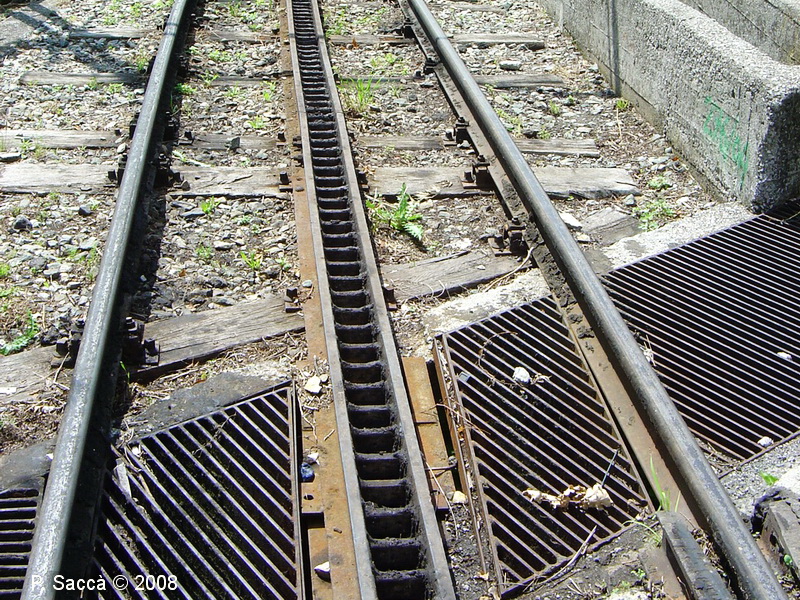

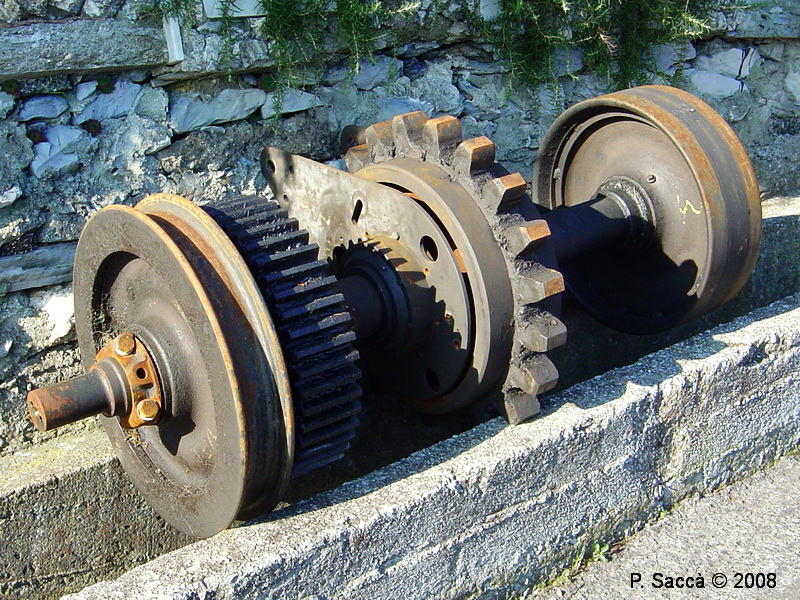

gra_0001.jpg (106684 bytes) gra_0031.jpg (229909 bytes) ache_0022.jpg (182001 bytes) ache_0024.jpg (144324 bytes)

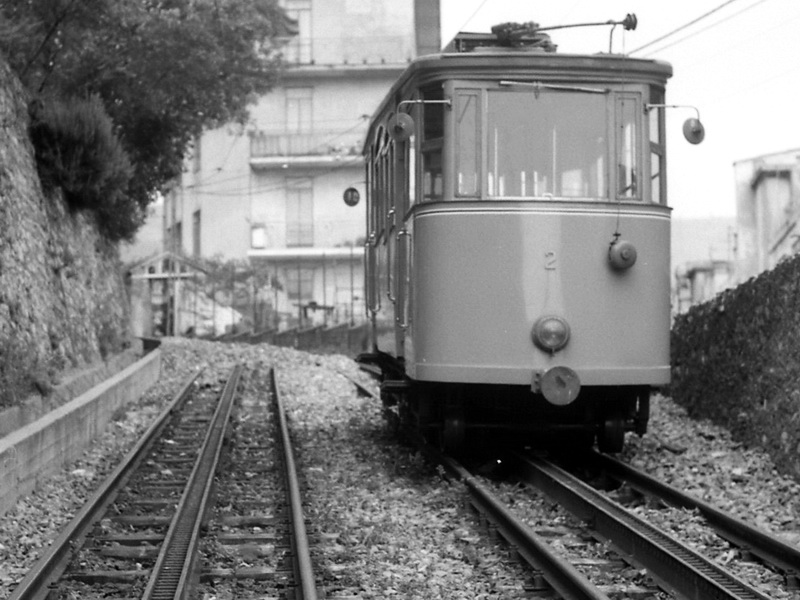

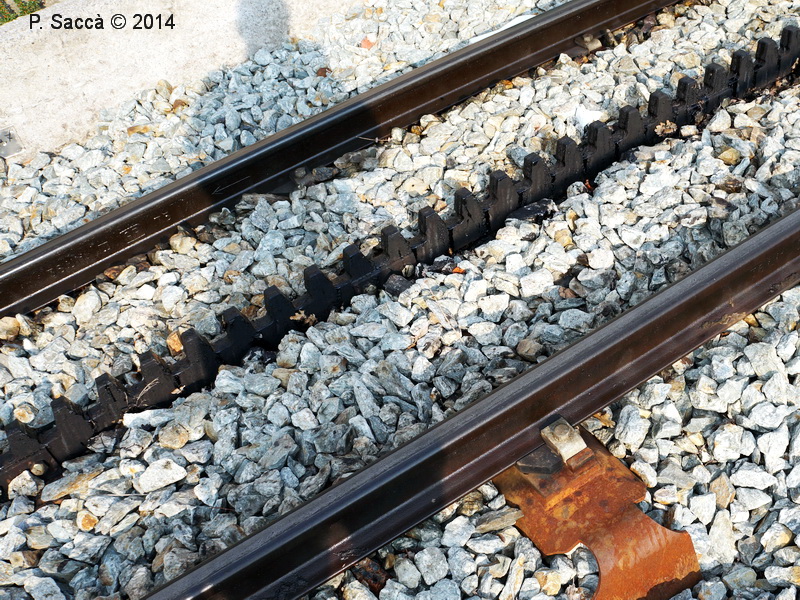

Principe -Granarolo, anni '70 Principe - Granarolo, 2008 Jenbach (A), 2005 Jenbach (A), 2005

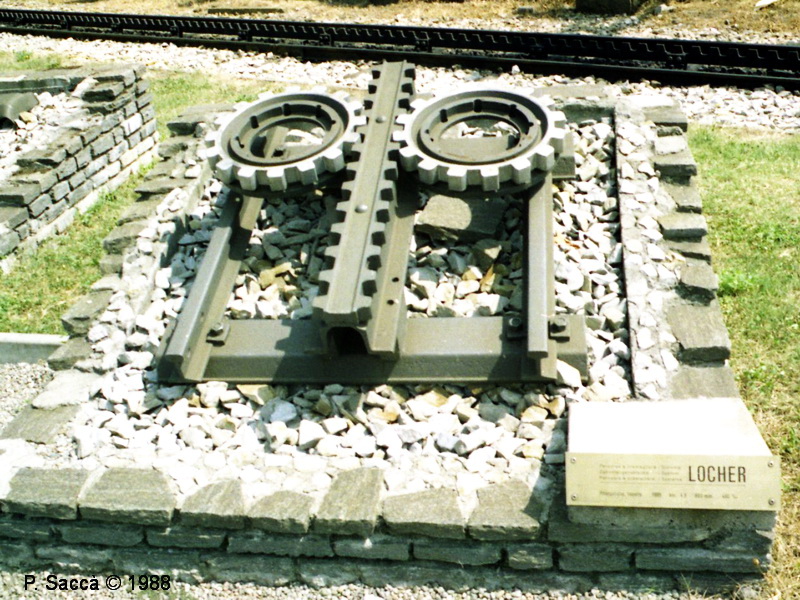

mg_0003.jpg (156949 bytes) Cremagliera tipo "Locher"( MG - Capolago, 1988 )

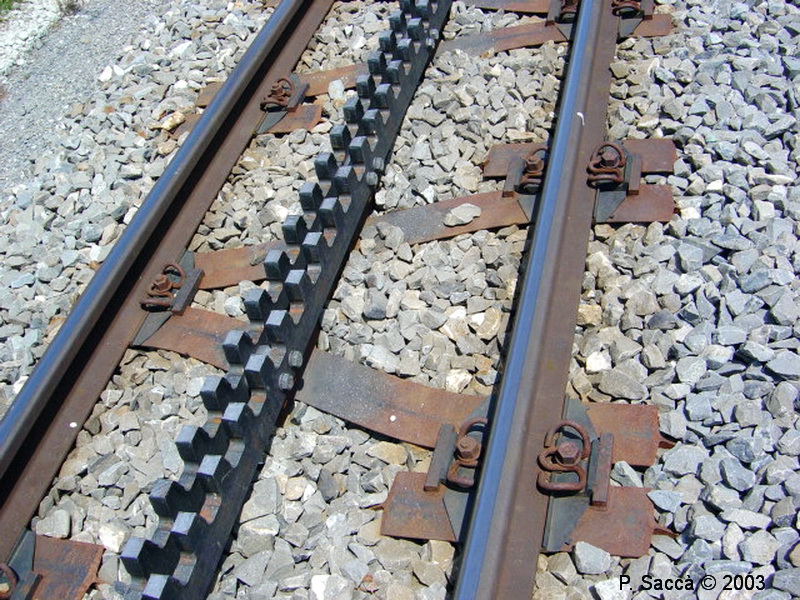

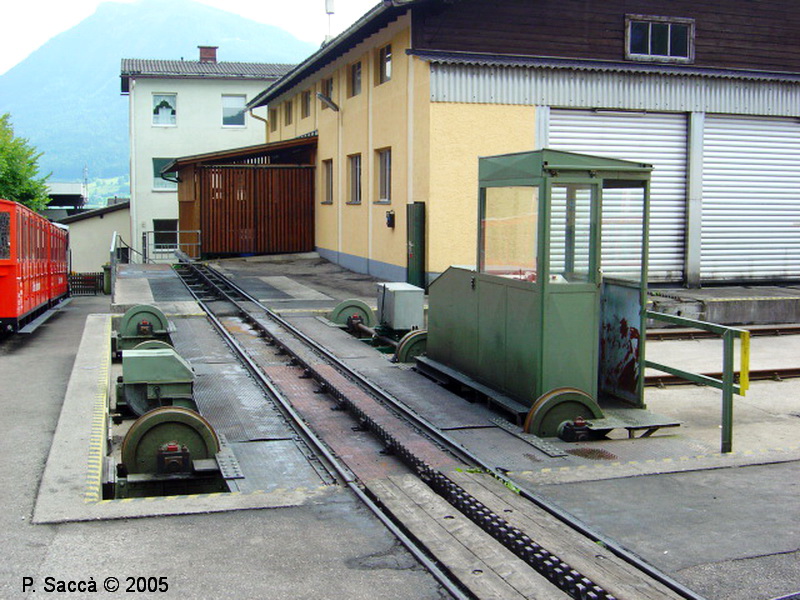

fo_0157.jpg (194083 bytes) Nuove traverse in acciaio con configurazione a "Y" scha_0016.jpg (154289 bytes) Ponte trasportatore con cremagliera "Abt"
FO - Oberalpass - 2003 Schafbergbahn (A), 2005
murt_0027.jpg (198224 bytes) c760_0040.jpg (224709 bytes) gurk_0037.jpg (195887 bytes) ybb_0137.jpg (243309 bytes)
Murtalbahn (A), 2004 Mauterndorf (A), 2004 Gurktalbahn, 2004 Kiemberg (A), 2004
Mariazellerbahn, 2005 Freiland (A), 2004

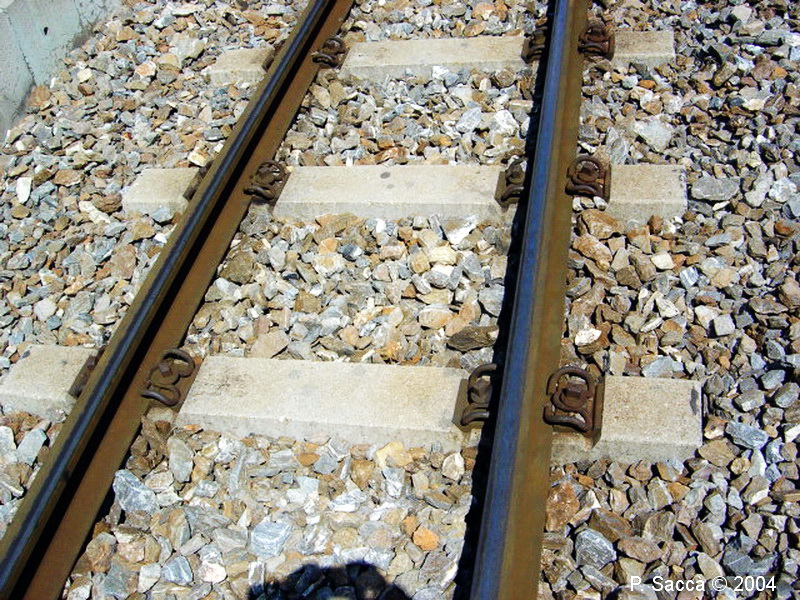

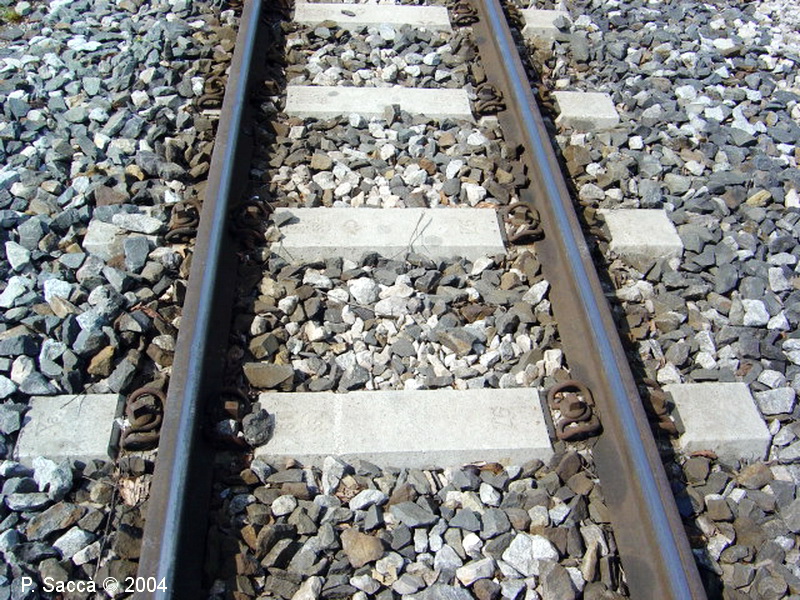

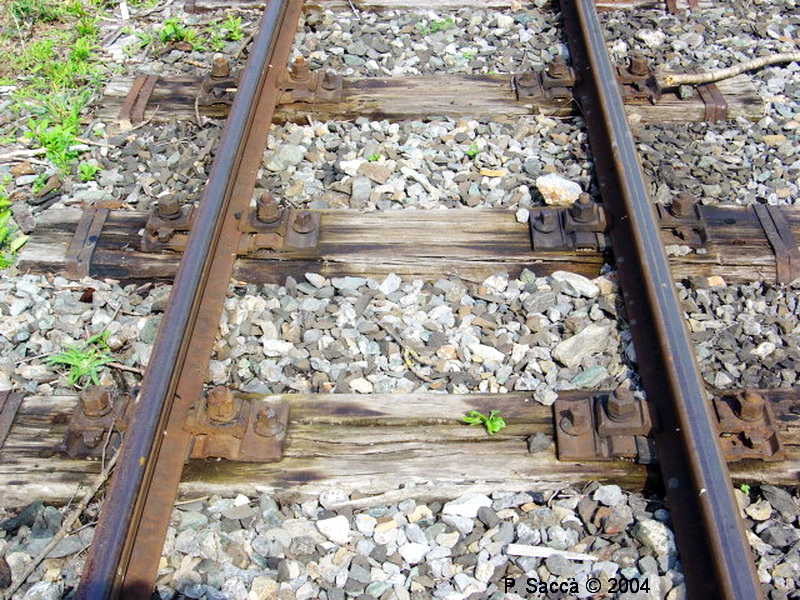

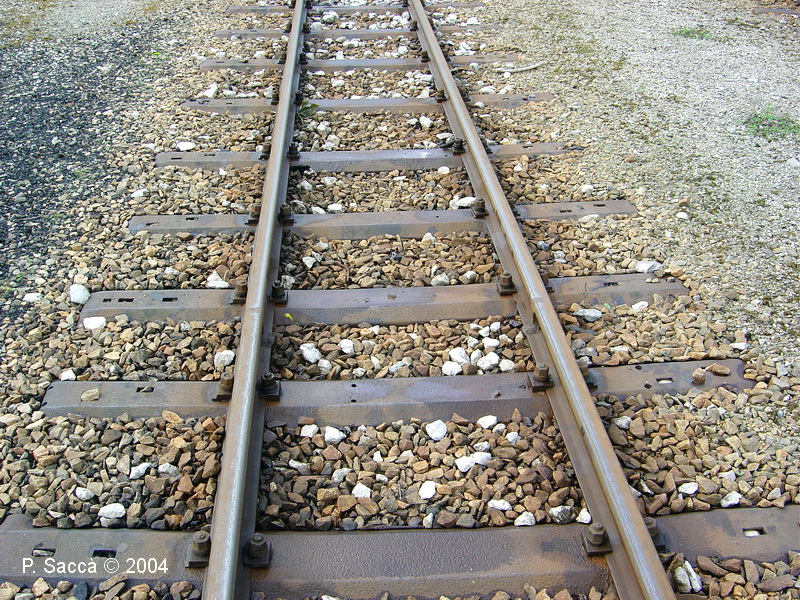

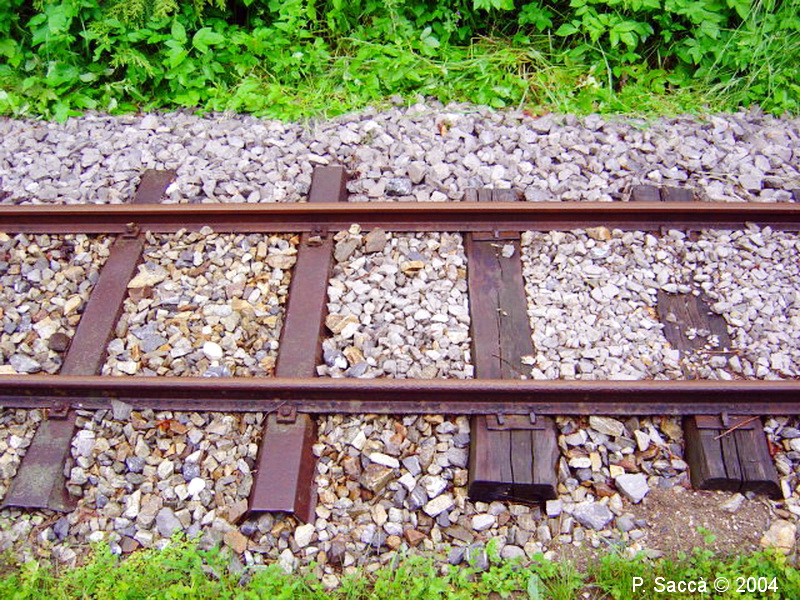

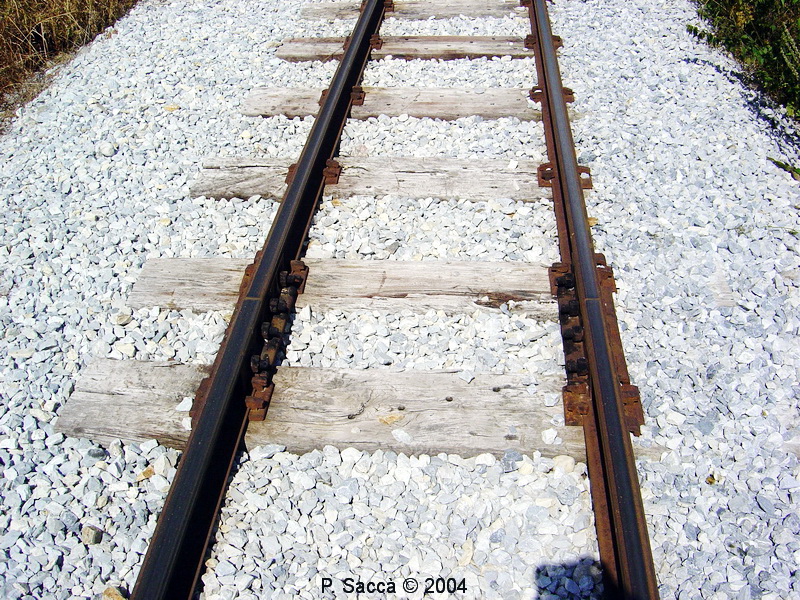

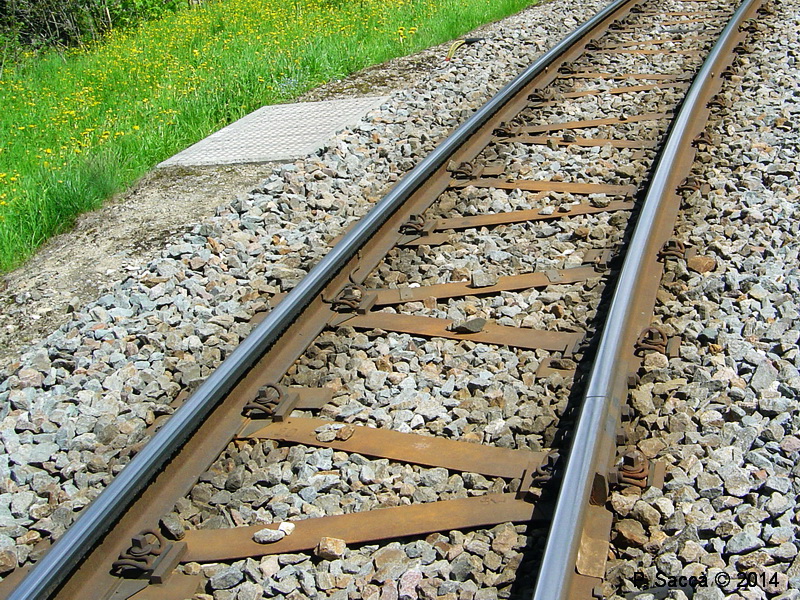

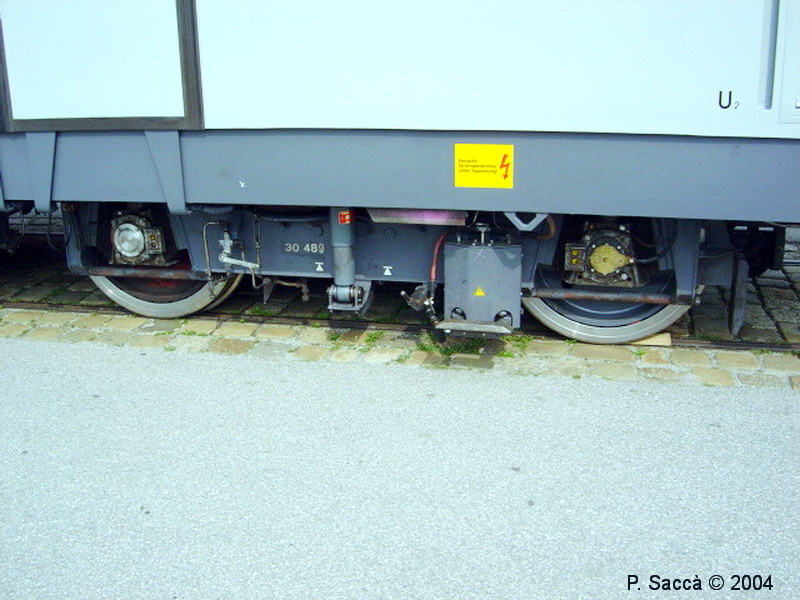

Sopra : diversi tipi di traverse ed ancoraggi su linee in Austria ( scart. 760 & decauville )
feist_0044.jpg (194965 bytes) wald_0075.jpg (189585 bytes) gurk_0038.jpg (206805 bytes) gurk_0039.jpg (203910 bytes)
Weiz (A), 2004 Gmund (A), 2004 Gurktalbahn, 2004 Gurktalbahn, 2004
Pinzgaubahn, 2005 Kiemberg (A), 2004

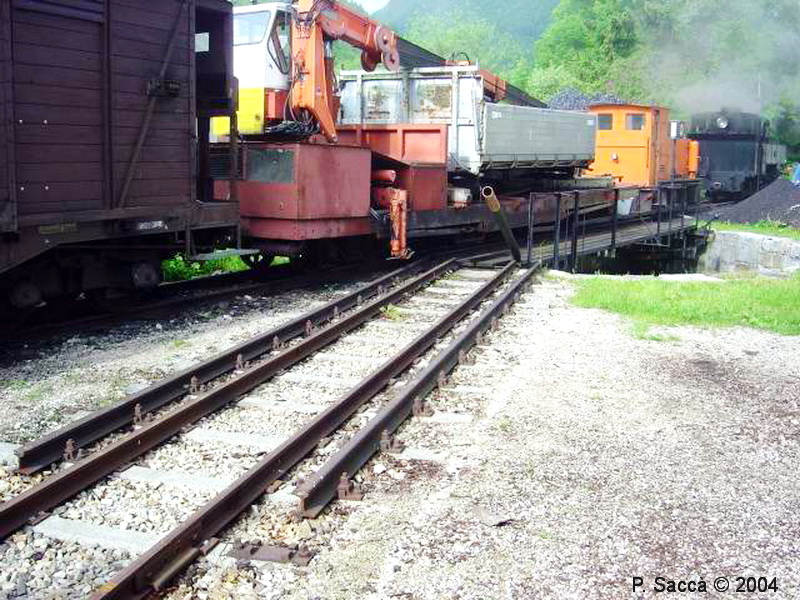

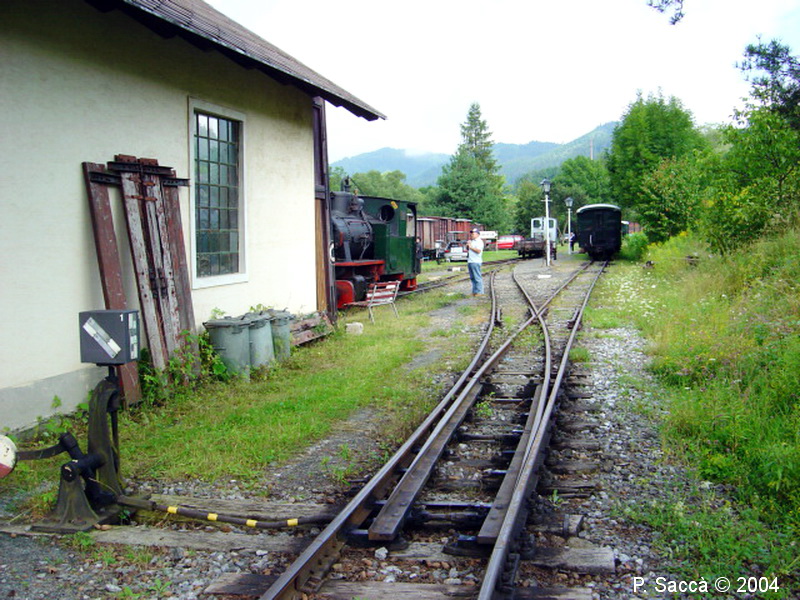

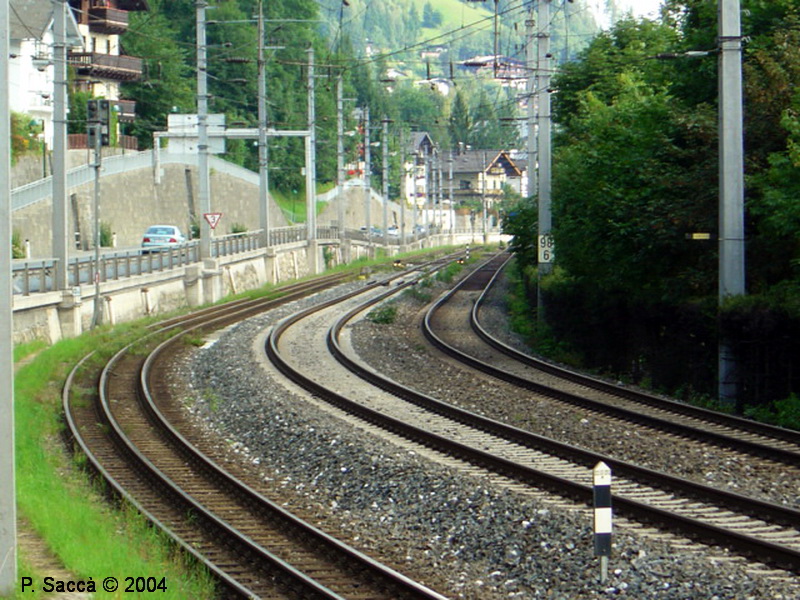

Sopra : alcuni casi di doppio scartamento in Austria
Murtalbahn (A), 2004 Gurktalbahn, 2004 Freiland (A), 2004

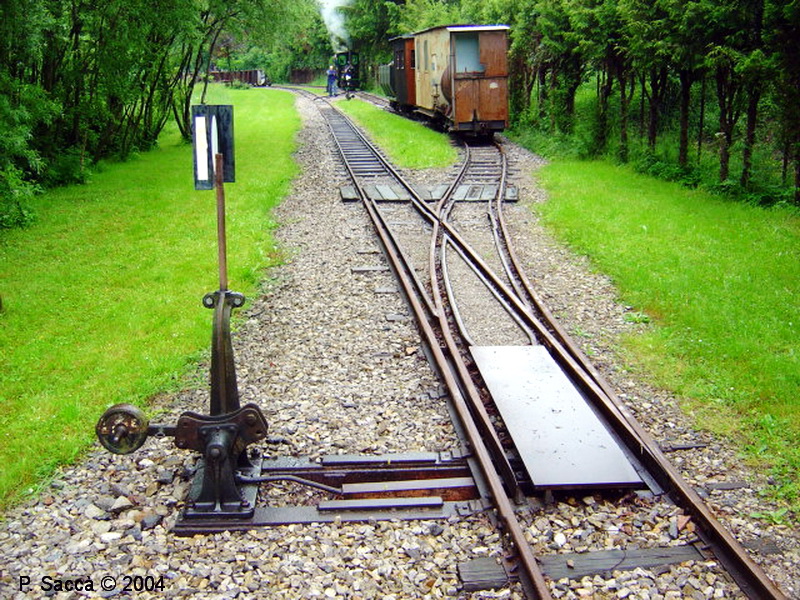

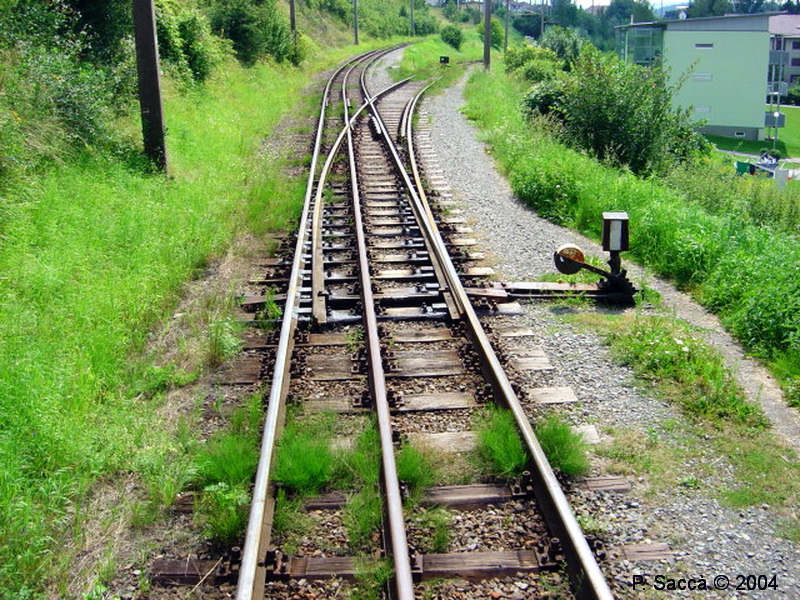

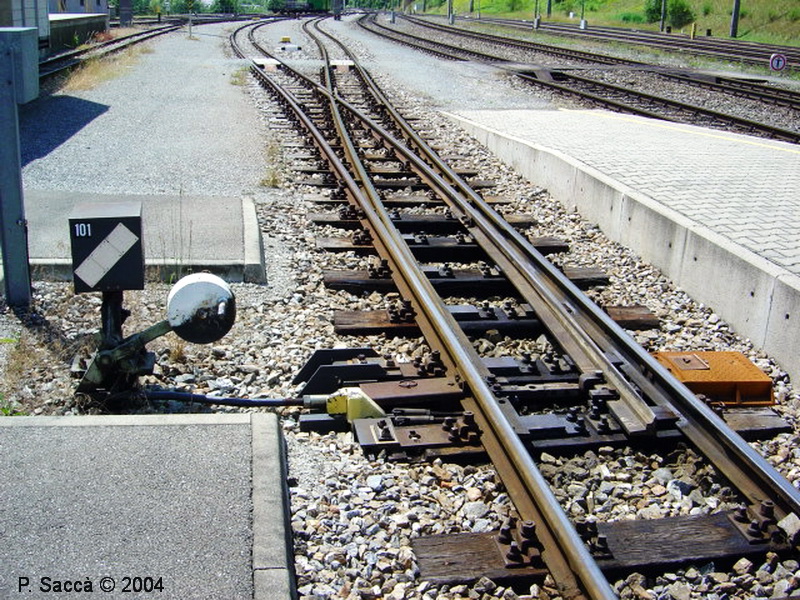

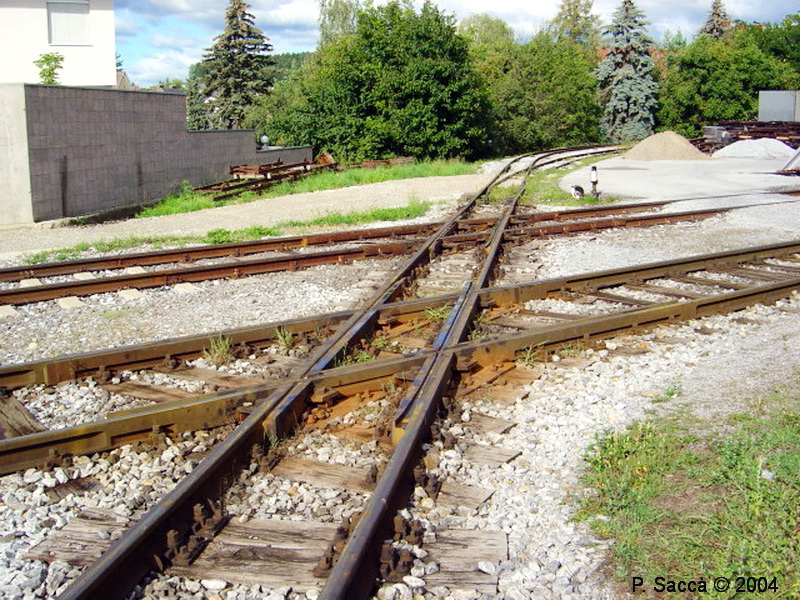

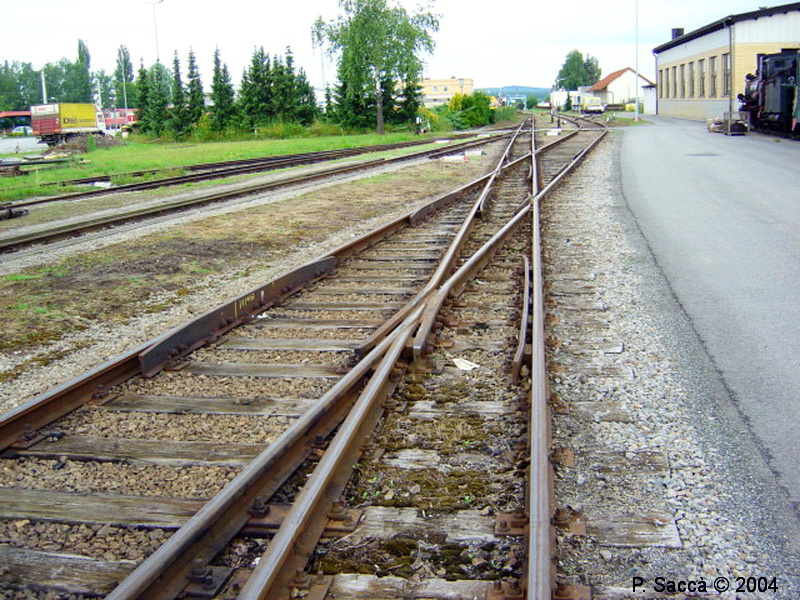

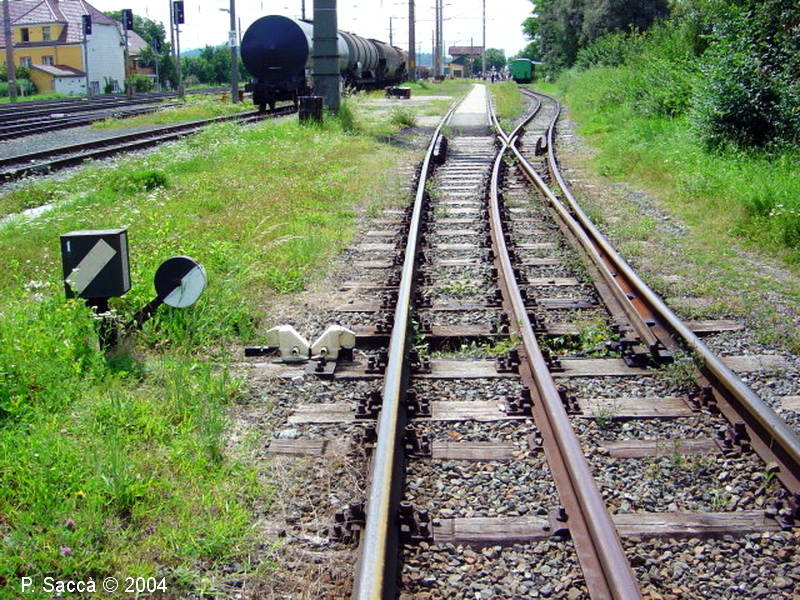

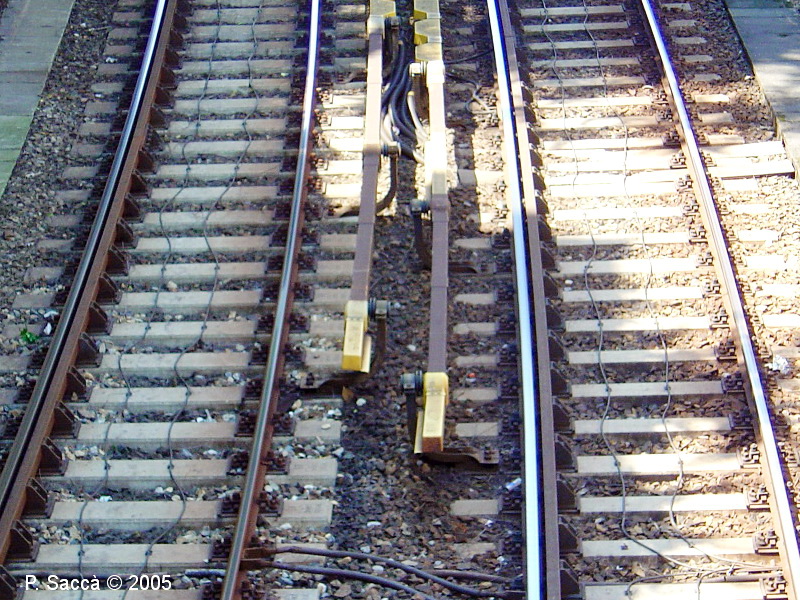

Sopra : alcuni tipi di scambio su linee in Austria ( scart. 760 & decauville )

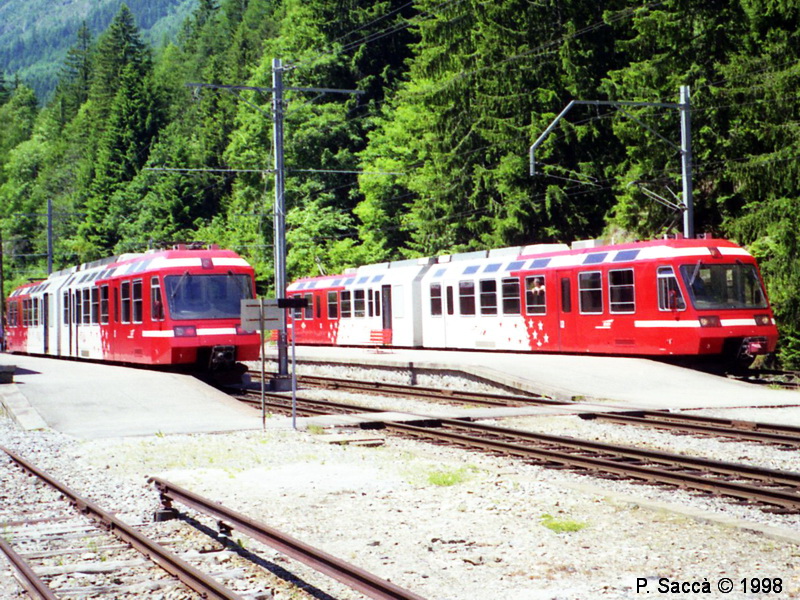

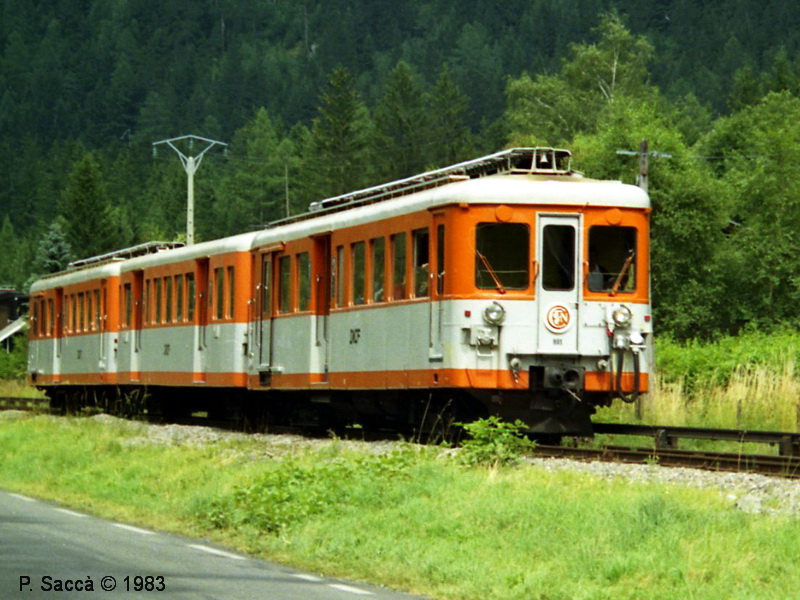

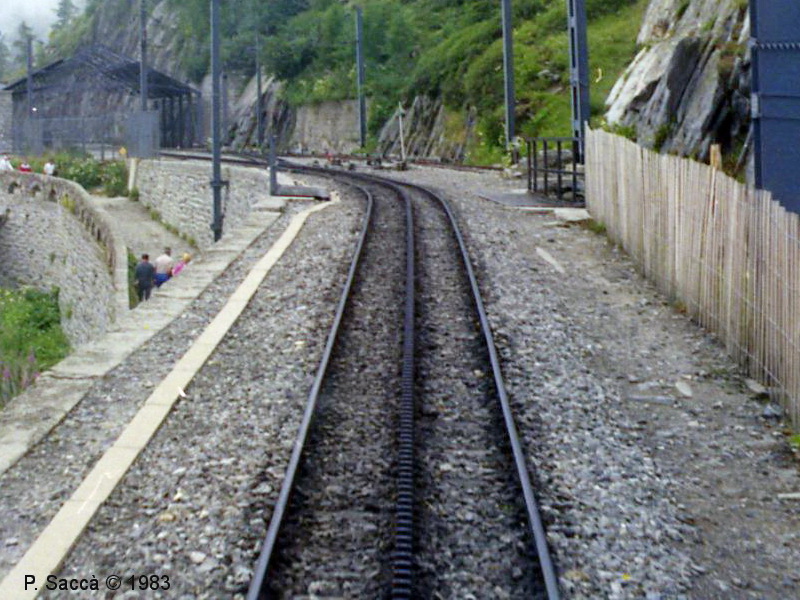

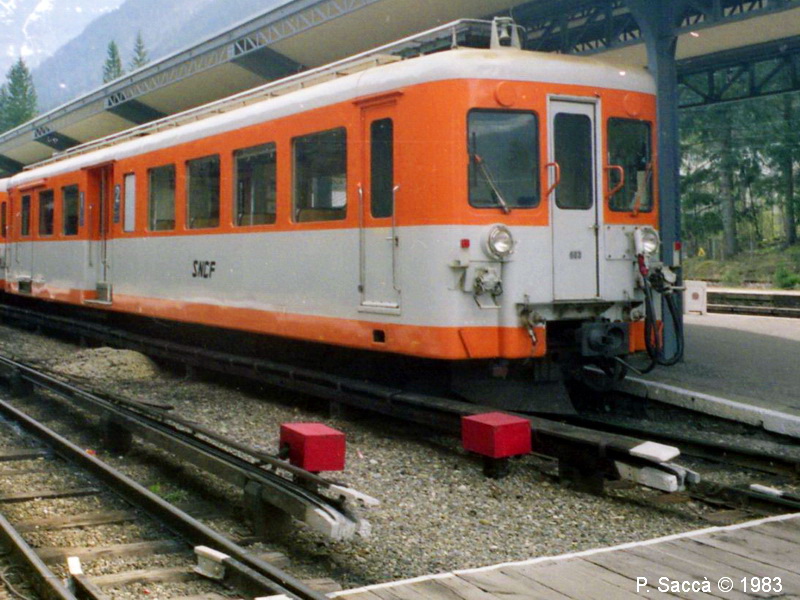

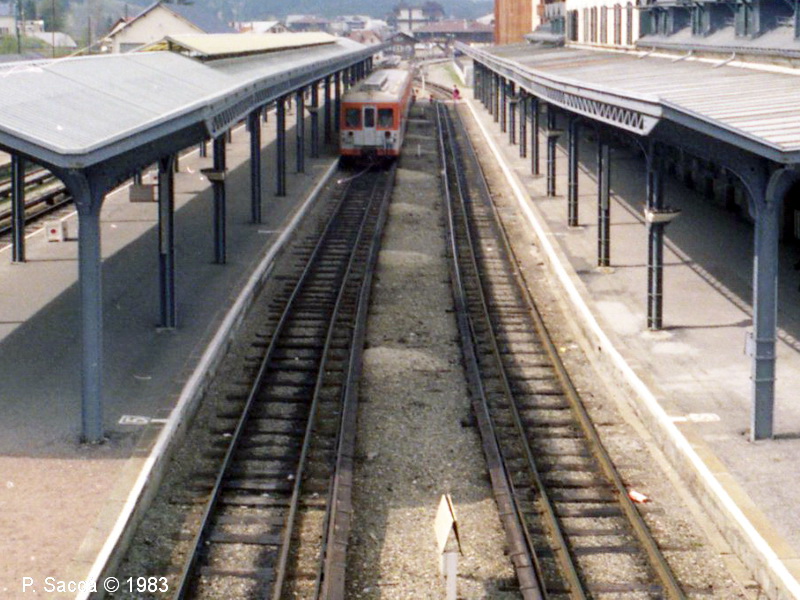

Sopra : alimentazione con terza rotaia - Chamonix, 08.1983 & Le Chatelard Frontiere, 06.1998
